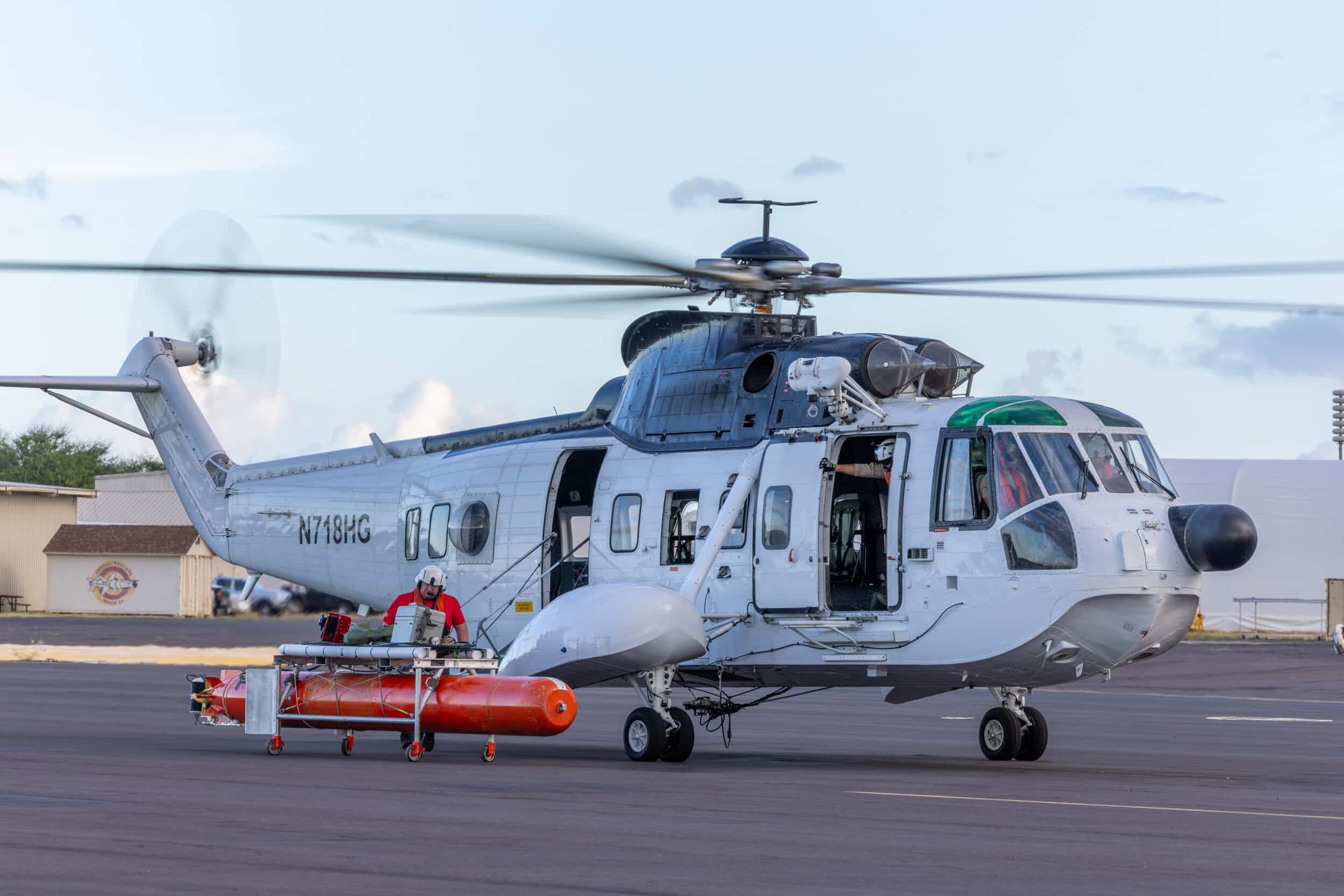

SIKORSKY S61N
The S-61N is one of the most versatile heavy lift helicopters available and has demonstrated its capabilities in missions ranging from construction, power line, oil and gas passenger and cargo transport, wild-fire suppression, NVG, aeromedical, Class D human external cargo, disaster relief and military mission support.
Range: 450 nm (833 km)
Cruise speed: 120 kn (138 mph)
Crew: 2 pilots
Capacity: 19 passengers
Max. gross weight: 22,000 lb (9,980 kg)
Internal Weight capacity: 6,660 lb (3,020 kg)
External Weight capacity: 10,000 lb (4,540 kg)
Standard day, sea level
CH-47D CHINOOK
The Tandem Rotor, LLC CH-47 Chinook is an American twin-engine, tandem rotor heavy-lift helicopter. With its triple-hook cargo system, the CH-47D can carry heavy payloads of up to 26,000 pounds (such as 40-foot (12-meter) containers) externally. The CH-47D also has advanced avionics, such as the Global Positioning System and NVG.
Range: 400 nm (741 km)
Cruise speed: 130 kn (149 mph)
Crew: 2 (pilot, copilot)
Capacity: 0 passengers*
Max. gross weight: 50,000 lb (22,680 kg)
Internal Weight capacity: N/A*
External Weight capacity: 26,000 lb (11,793 kg)
*Restricted Category
Standard day, sea level
Hughes 369
The Hughes 369, a variation of the MD Helicopters MD 500 series, is an American light utility helicopter, used commonly to support a wide range of military and paramilitary missions.
Range: 328 nm (607 km)
Cruise speed: 126 kn (145 mph)
Service Ceiling: 14,500 ft
Crew: 1-2 pilots
Capacity: 4-5 passengers*
Max. takeoff weight: 3,000 lb (1,361 kg)
External Weight capacity: 22,700 lb (1,361 kg)
*Dependent upon single or dual pilot operations
Standard day, sea level
Virtual Tour Coming Soon!

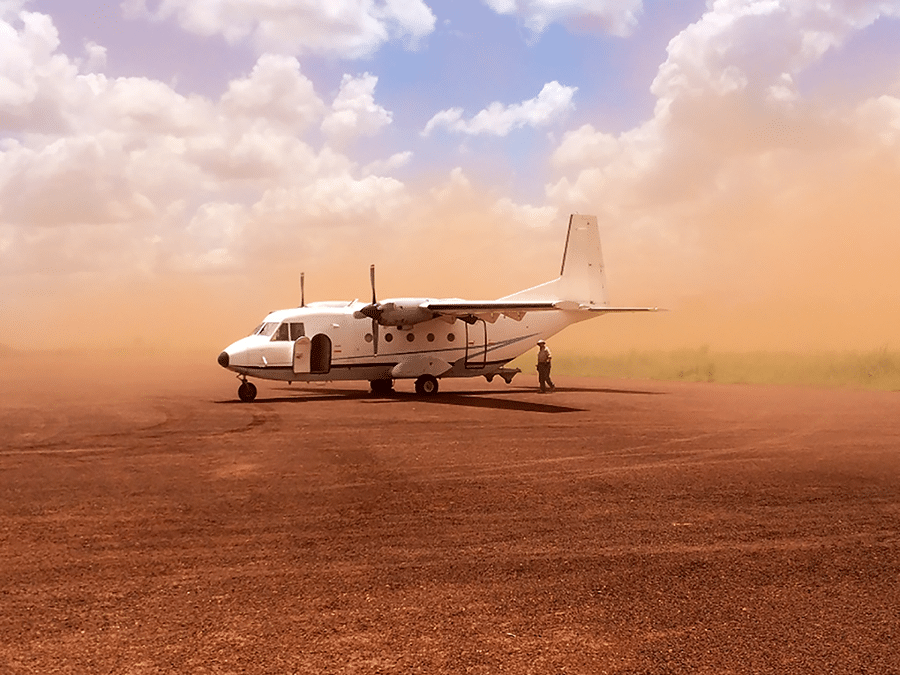

CASA 212
The CASA 212 is a capable and extremely versatile aircraft specifically designed for maximum maneuverability at low speeds. The aircraft’s wide, high wing, large cargo area, and wide rear ramp make the CASA 212 the ideal aircraft for skydiving, passenger and cargo transportation, and Short-Takeoff and Landing (STOL) operations in remote and austere environments utilizing unimproved runways.
Range: 978 nm (1811 km)*
Cruise speed: 162 kn (186 mph)
Service Ceiling: 18,500 ft
Crew: 2 pilots
Capacity: 19 passengers
Max. takeoff weight: 16,976 lb (7,700 kg)
Useful Load: 8,642 lb (3,920 kg)
Runway Length Required: 1,400 ft
*Max range assumes no auxiliary tanks have been mounted.
Standard day, sea level
Virtual Tour Coming Soon!
King Air 350
This iconic aircraft stands alone as the most successful turbine-powered business aircraft model of all time. It ensures our passengers receive the comfort and safety expected. CHI Aviation’s King Air 350 can be configured with a MedBed to support aeromedical operations.
Range: 1,674 NM (3,100 km)
Average Block Speed: 295 kn (340 mph)
Long Range Cruise Speed: 232 kn (267 mph)
Service Ceiling: 35,000 ft
Crew: 1-2 pilots
Capacity: 7-8 passengers*
Max. takeoff weight: 16,500 lb (7,484 kg)
Max Payload: 2,570 lb (1,166 kg)
*Max range assumes no auxiliary tanks have been mounted.
Standard day, sea level
